   AMPLIFIER


2 / 3 / 4  CHANNEL, A/B  CHANNEL Amplifier



FEATURE:



 Model

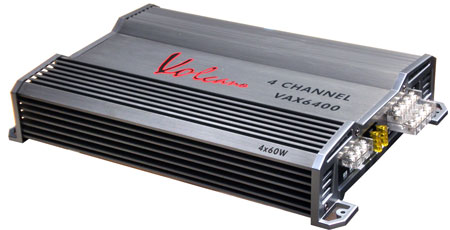

 VAX 6400

SPECIFICATIONS
Supply Voltage 11~15 DC
Max power 1100 W
Power Output 4 Ω 60 W x 4
Power Output 2 Ω 90 W x 4
Bridged Power Output 4 Ω 150W x 2
Frequency Response 20 Hz ~ 36 KHz (-1 dB)
Channel Separation 50 dB (+A)
Signal To Noise Ratio 90 dB (+A)
Input Impedance 22 K Ω
Input Sensitivity 100 mV ~ 4V
T.H.D < 0.02%
HI PASS FREQ 100 Hz ~ 1 KHz
LOW PASS FREQ 40 Hz ~ 250 Hz
BASS BOOST +6/+12dB at 45 Hz
Fuse 20A x 2
