 PRE-Amplifier |
|
 |
4 Band
Graphic Equalizer |
| |
|
FEATURE
- Active
gain pre amplifiers with adjustable input sensitivity.
- Volume
Control with up to 7 Volts RMS of output.
- Individual
left and right sensitivity control for Main & Aux.
- Four
band parametric equalizer with 18dB boost Cut.
- Specific
bandwidth for each band plus high frequency shelving.
- Low
noise Bi-Fet Op-amp design yields minimum distortion.
- On-Board
30V bi-polar switching power supply.
- Subwoofer
outputs and level controls.
- Subwoofer
frequencies adjustable (50Hz ~ 250Hz).
- Universal
Half-DIM chassis for ease of installation.
- Gold
plated RCA input connectors.
- 20dB
headroom eliminates signal overload.
- Main/Aux
(Radio/CD) input selector.
|
| |
|

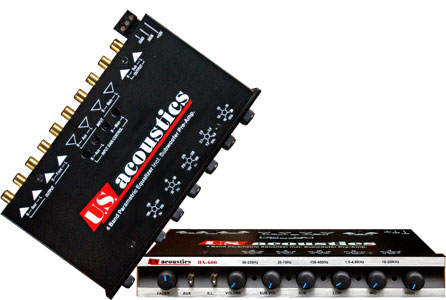

Model |
HX 600 |
|
SPECIFICATIONS
|
|
4-Band
Parametric |
Sub
70 Hz, Low 400 Hz,
Mid 4 KHz, Hi 20 KHz |
|
Boost/Cut |
18
kB |
|
Bandwidth |
Specific
to each band-hi shelving |
|
S/N
Ratio |
90
dB REF 1V Input |
|
Frequency
Response |
10Hz~20KHz,
± 1dB |
|
Max
Output voltage |
7V
RMS |
|
T.H.D. |
0.05% |
|
Input
Sensitivity |
Adjustable
50mV~3V RMS |
|
Headroom |
20
dB |
|
Input
Impedance |
15K
Ohms |
|
Stereo
separation |
82dB
/ 1KHz |
|
Operating
Voltage |
11~15V
Negative ground |
|
Output
Impedance |
50K
Ohms |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
