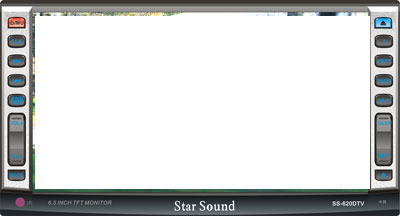

DVD Player With TFT Monitor


SS 620DTV

Two Din 6.5" TFT Monitor Built In DVD Player, AM/FM Receiver & TV Tuner



FEATURE

  • LCD Monitor with Touch Screen Control
  • Auto-Loading MP4/DVD/VCD/MP3/CD Playback Compatible
  • Built-in TV Receiver System
  • On Screen Display Menu
  • Rear View Image Input Function
  • Electronic Volume/Tone/Balance Loudness Control
  • 36 Preset AM/FM Stations
  • Super-Storing Memory Playback for DVD



  Model

SS 620DTV

SPECIFICATIONS

Power

DC 12~13.8V


FM

Frequency Range (Europe / Aust) 87.5 ~ 108.0 MHz
Frequency Ranger (America) 87.5 ~ 107.9 MHz
Intermediate Frequency 10.7 MHz
Practicality neat (S/N 30 dB) < 22 dB
Stereo Separation

>25 dB


AM

Frequency Range (Europe) 522 ~ 1620 KHz
Frequency Range (Aust) 522 ~ 1710 KHz
Frequency Range (America) 530 ~ 1710 KHz
Intermediate Frequency 450 KHz
Practicality Neat (S/N 20 dB)

< 48 dB


TFT LCD Monitor

Liquid screen size 6.5 inch (Diagonal)
LCD Dimension 157.2mm x 89.8mm x 7.7mm
Display definition 400 RGB (W) x 234 (H) dot
Display Area 143.4 (W) x 79.326 (H) mm
