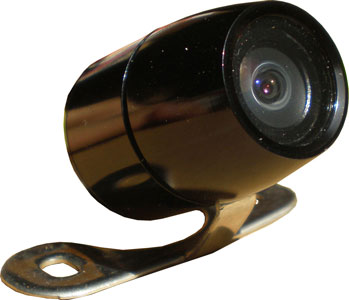

 Reverse
Sensor Camera |
|
|
|
| |
|
FEATURE
|
| |
|
Model
|
CA 2300
|
|
SPECIFICATIONS
|
|
Sensor
|
OV
7910 1/3 CMOS
|
| TV
System |
PAL / NTSC optional |
|
Effective Pixels |
NTSC 510 x 492, PAL
628 x 582 |
| Horizontal
Resolution |
380 TVL |
|
Min. Illumination
|
3.0 Lux / F = 1.2,
(0 LUX with IR on) |
| Viewing
angle |
92°,120° |
|
Night Vision |
0, 3m~5m, 5~8m, 10~15
m, 15~20m |
| Video
Output |
RCA connector,
1.0 Vp-p 75Ω |
|
Current Consumption
|
50 mA max 300mA
with IR on |
| Power
supply |
DC 12 V |
|
Operating Temperature |
-10°C~50°Cm RH 95%
max |
| Storage
Temperature |
-20°C ~ 60 °C,
RH95% Max |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
