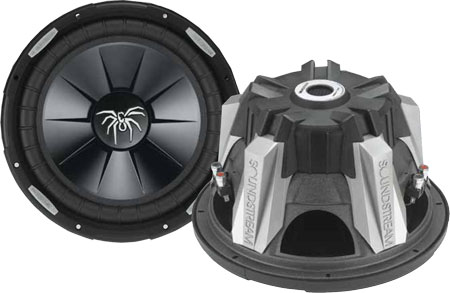

Back for 2009 is the rejuvenated
of Rubicon subwoofers! Modernized with today’s technologies,
the Rubies awesome cosmetics are only a cool shell for the
good stuff inside. Molded polypropylene/mica cones yield
the structural integrity required for woofers of this caliber.
Convoluted NBR rubber surrounds yield superior strength
and reliability. The dual voice coils are wound around Kapton
formers for strength and sufficient cooling.
If you loved the old-school
Rubicon woofers, the new Rubies will blow you away with
their vast improvements…
|
|
FEATURE
-
Dual 4 Ohm KEISV Kapton
Voice Coils
-
Polypropylene Injection
Molded Cone
-
NBR-Rubber Surround
-
Nickel Plated 8 ga. Compression
Wire Terminal
-
Conex/Cotton Composite
Spider
-
Texture Coat Finish on
Stamped Steel Basket
-
Suspension Integrated Tinsel
Leads
-
Vented Back Plate
|
| |
|
Model
|
RBW 10
|
|
SPECIFICATIONS
|
|
Fs (hz)
|
33.86 |
| Qms
|
5.495 |
|
Vas (ft³)
|
1.086 |
| Cms
(mm/n) |
0.211 |
|
Mms (g)
|
104.5 |
| Rms
(kg/s) |
1.046 |
|
Xmax (mm)
|
11.10 |
| Xmech
(mm) |
16.65 |
|
Dia (in²)
|
8.069 |
| Sd
(in²) |
52.00 |
|
Vd (ft³)
|
0.019 |
| Qes
|
0.597 |
|
Re (Ohm)
|
7.2 |
| Z
(Ohm) |
8 |
|
BL (Gauss)
|
16.37 |
| Pe
(watts) |
450 |
|
Qts |
0.539 |
| NO
|
0.193 |
|
1w/1m SPL (dB)
|
84.80 |
| 2.8v
SPL (dB) |
85.46 |
|
VC Dia. (in) |
2.0 |
| Impedance
(Ohm) |
DVC 4 |
|
M-vd (ft³) |
0.100 |
|
Sealed Box Specification
|
|
Min. Sealed (ft³)
|
0.50 |
| Qtc
|
0.978
|
|
F3 (Hz)
|
51.88 |
| Opt.
Sealed (ft³) |
0.75
|
|
Qtc |
0.837 |
| F3
(Hz) |
48.11
|
|
Max. Sealed (ft³)
|
1.00 |
| Qtc
|
0.764
|
|
F3 (Hz) |
46.90 |
|
Ported Box Specification
|
|
Min. Vented (ft³)
|
1.25 |
| Port
(dia. x length) |
3x12
|
|
Fb (Hz)
|
37.93 |
| F3
(Hz) |
33.46
|
|
Opt. Vented (ft³)
|
1.50 |
| Port
(dia. x length) |
3x12
|
|
Fb (Hz)
|
34.24 |
| F3
(Hz) |
30.31
|
|
Max. Vented (ft³) |
1.75 |
| Port
(dia. x length) |
3x12
|
|
Fb (Hz)
|
31.46 |
| F3
(Hz) |
27.96
|
| |
|
|
Measurements (in)
|
|
Overall Diameter
|
10.5 |
| Overall
Height |
6.375
|
|
Mounting Depth
|
5.75 |
| Cutout
Diameter |
9.25
|
|
Flange Width
|
0.75 |
| Flange
Height |
0.625
|
|
Weight (lb)
|
9.3 |
|
| |
|
| |
|
|
