 4 Channel AMPLIFIER |
|
|
 |
| |
|
FEATURE
- 2/3/4/5 Mode Speaker
Operation
- MOSFET PWM controlled
power supply
- Gold Plated RCA JACK,
Speaker Output Terminal And Power Terminal
- Built-in Input Level
Adjust
- Built-in Crossover with
LPF/OFF/HPF And Variable Control
- Built-in Bass Boost
Control
- Plug-in Auto Fuse
- No Interal Wiring
- Soft Start
- 2 Ω Stable
- Protection Circuitry
Against Termal, Overload, Short Circuit And DC Offset
|
| |
|
Model |

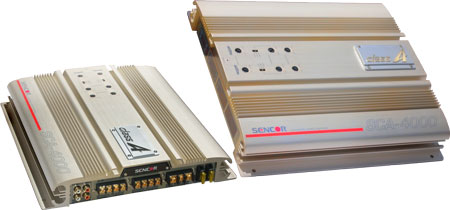

SCA 4000 |
|
SPECIFICATIONS
|
|
Audio Power Output per
channel, both channels driver at 14.4 V DC. |
|
|
4 Ω 20 Hz ~ 20 KHz, THD 0.08% |
100 W x 4 |
|
|
4 Ω Bridge 1 KHz
THD 0.2% |
200 W x 2 |
|
Signal To Noise Ratio |
> 95dB |
Frequency Response,
10Hz ~
50KHz |
+0, -1 dB |
|
Input Sensitivity |
150mV ~ 3V adjustable |
|
Input Impedance (Low Level
Input) |
20 K Ω |
|
Damping Factor |
> 200 into 4Ω |
|
Channel Separation |
> 50 dB |
|
Power Supply Consumption |
30 A NOM |
|
Fuse Rating |
20 A x 2, 32 V DC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
