Amplifier Set


Mono Block




FEATURE

  • Class "D" Technology
  • Fully 2 Ω and 1 Ω Stable Operation
  • Military Spec Audiophile Grade Components
  • High Efficiency PWM Power Supply
    -Multi-stranded power torroid
    -MOSFET transistors
    Over Sized Capacitor Banks
  • Discrete Mount Power and Speaker Terminals
  • Variable Lowpass Electronic Crossover
  • Variable Subsonic Filter
  • RCA Preamp Output
  • 3 Way Protection Circuitry
  • Soft Remote on/off Circuitry
  • Digital Subwoofer Level Control



 Model

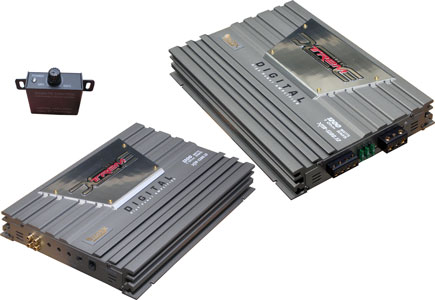

XTR-500.1 XTR-1200.1D

SPECIFICATIONS

RMS Power / 4 Ω @ 0.08 % T.H.D 200 W x 1 450 W x 1
            2 Ω @ 0.4% T.H.D 380 W x 1 800 W x 1
            1 Ω @ 1% T.H.D 500 W x 1 1200W x 1
Efficiency / Typical @ 4 Ω 86 % 86 %
            Worst Case @ 1 ohm N/A 72 %
Bandwidth ± 1 dB 10 Hz ~ 250 Hz 10 Hz ~ 250 Hz
Signal TO NOise > 90 dB > 90 dB
Damping Factor 130 130
Input Sensitivity 240 mV ~ 4 V 240 mV ~ 4V
Input Impedance 20 K Ω 20 KΩ
CIrcuit Breaker 50 Amp 90 Amp
Crossover
Low Pass Variable 50 ~ 250 Hz 50 ~ 250 Hz
X-Over Slope 18 dB 18 dB
Variable Subsonic Filter 20 ~ 50 Hz @ 18 dB 20 ~ 50 Hz @ 18dB
