 VCD/CD/MP3 PLAYER |
|
|
 |
| |
|
FEATURE
-
Anti-Theft Fold
Down Detachable Face
-
VCD/CD/CD-RW/MP3
Compatible
-
Auto
Store/Preset Scan
-
Mute/Loudness/LO/DX Control
-
Repeat / Ramdom/Intro
Control For CD
-
AM/FM 2 Band
Radio
-
Direct Access
Track & Programm Selection Play
-
Ejects/Inserts
The Disc Automatically
-
Wireless Remote
Control With Full Functions Extra
-
Gib Size LCD
Display
-
Electronic
Shock Protection
-
VCD L/R Channel
Selection
-
VCD PBC Menu
-
Optional Time
for Playing
|
| |
|

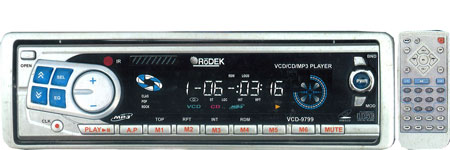

Model |
VCD 9799 |
|
SPECIFICATIONS
|
|
Power Requirement |
14.4 VDC (10.8 ~ 15.6 allow) |
|
Current Consumption |
Less than 2.0 A |
Maximum Power Output
|
4 x 25 W
|
VCD DECK SPECIFICATIONS |
|
Format |
VCD-Video Disc, Compact Disc |
|
Video System |
Standard NTSC / PAL |
|
Audio System |
MP3 |
|
Loading System |
Auto Loading |
Mounting Angle
|
0 ~ ±30
|
|
VIDEO
SPECIFICATIONS |
|
Video System |
4:3 Letter Box and 4:3 Pan
Scan |
|
Video Output Level |
1.0Vp-p 75Ω |
|
Horizontal Resolution |
500 |
|
Video Input Terminal |
0.5 ~ 2 Vp-p 75Ω |
|
|
|
|
Audio
Specification |
|
Maximum Output |
2 Vrms(±3dB) |
|
Frequency Response |
20 ~ 20 KHz |
|
S/N Ratio (A-vtd) |
85 dB |
|
Separation |
80 dB |
|
|
|
|
Radio
Specifications FM section |
|
Frequency Response |
87.5 MHz ~ 108 MHz |
|
Usable Sensitivity |
3 µ V |
I.F Frequency
|
10.7 MHz
|
Radio Specifications AM
Section |
|
Frequency |
522 KHz ~ 1620 KHz |
|
| |
