 Amplifier Set |
|
|
|
| |
|
FEATURE:
|
| |
|
Model |
SP-150.2 |

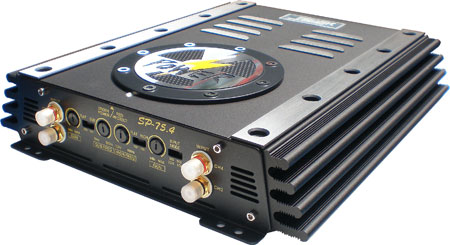

SP-75.4 |
SP-1100.6 |
|
SPECIFICATIONS
|
|
Channels |
2 / 1
Channel |
4 / 3
/ 2 Channel |
6 / 5
/ 4 / 3 Channel |
|
RMS Power
( 4 Ω ) |
2 x 150
Watts |
4 x 75
Watts |
4 x 75
Watts
2 x 100 Watts |
|
RMS Power (2Ω) |
2 x 300 Watts |
4 x 150 Watts |
4 x 75 Watts
2 x 200 Watts |
|
Bridged Power (4Ω) |
600 W |
2 x 300 Watts |
2 x 300 Watts
400 Watts |
|
Frequency Response |
12 Hz ~ 45K Hz |
12 Hz ~ 25 KHz |
12 Hz ~ 45 KHz |
|
Signal to
Noise Ratio |
> 110 db |
> 110 db |
> 110 db |
|
T. H. D. |
<0.05% |
<0.05% |
<0.05% |
|
Input Sensitivity |
200mV ~ 4 V |
200mV ~ 4 V |
200mV ~ 3 V |
|
Input Impedance |
10 KΩ |
10 KΩ |
10 KΩ |
|
Subwoofer Filter |
30 Hz ~ 500 Hz / 24 dB |
30 Hz ~ 500 Hz / 24 dB |
30 Hz ~ 500 Hz / 12 dB |
|
High Pass Filter |
40 Hz ~ 400 Hz/ 12 dB |
40 Hz ~ 400 Hz/ 12 dB |
40 Hz ~ 800 Hz/ 6 dB |
|
Damping Factor |
> 140 |
> 120 |
> 120 |
|
Bass Boost |
50 Hz / 18 dB |
No |
50 Hz / 18 dB |
|
Fuse Rating |
ATC 30A x 2 |
ATC 35 A |
ATC 35 A x 2 |
|
| |
|
| |
|
|
