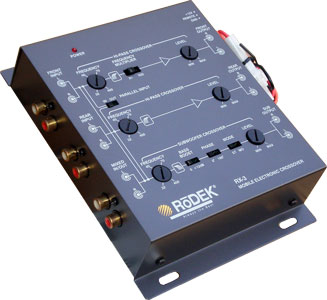

 Active Crossover |
|
|
|
| |
|
FEATURE:
|
| |
|
Model |
RX-3 |
|
SPECIFICATIONS
|
|
Power Source |
14.4 volts DC negative ground |
|
Input Current |
0.5 amp max |
|
Distortion |
0.01% THD at 1 V output level |
|
Frequency Response |
10 Hz ~ 30 K Hz -3dB |
|
S/N ratio (A weighted) |
> 95 dB |
|
Separation |
60 dB |
|
Crossover frequencies (continuously variable) |
| |
Front High-pass X1 |
32 ~ 400 Hz |
|
|
Front High-pass X1 |
640 ~ 8 KHz |
|
|
Rear High-pass |
32 ~ 400 Hz |
|
|
Subwoofer |
32 ~ 400 Hz |
|
Crossover slope rate |
|
|
Low-Pass |
18 dB per Octave 3rd Order
Butter worth |
|
|
High-Pass |
12 dB per Octave 2rd Order
Butterworth |
|
Subwoofer boost |
Single octave 0 dB to 12 dB
(variable) at 45 Hz |
|
Input Impedance |
20 K Ω |
|
Output Impedance |
100 Ω |
|
Output gain |
1:2 (+6 dB) |
|
Output voltage level |
5 V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
