 PRE-Amplifier |
|
|
7 Band Parametric Equalizer w/
Subwoofer Out |
| |
|
FEATURE
- Active gain pre amplifiers
with adjustable input sensitivity
- Individual left and right
sensitivity control for RADIO and AUX
- Specific bandwidth for each
band plus high frequency shelving
- Low noise BI-FET op-amp
design yields minimum distortion
- Subwoofer frequencies
adjustable (30 Hz ~ 250 Hz)
- Gold plated RCA input
connects
- 20 dB Headroom eliminates
signal over load
|
| |
|

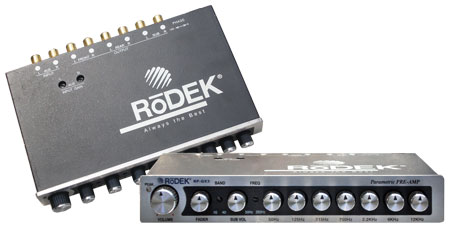

Model |
RP-QX 3 |
|
SPECIFICATIONS
|
|
7 Band Parametric |
50 Hz
125 Hz
315 Hz
750 Hz
2.2 KHz
6 KHz
12 KHz |
|
Boost / Cut |
12 dB |
|
Bandwidth |
Specific To Reach Each Band
Hi-Shelving |
|
S/N Ratio |
110 dB REF 1V Input |
|
Frequency Response |
20 Hz ~ 27 KHz ± 1 dB |
|
Max output voltage |
10 VRMS |
|
T.H.D |
0.0014% |
|
Input Sensitivity |
Adjustable 180 mV ~ 3.5 V RMS |
|
Headroom |
20 dB |
|
Input Impedance |
20 KΩ |
|
Stereo Separation |
80 dB / 1 KHz |
|
Operating Voltage |
11 ~ 15 V Neg. Ground |
|
Output Impedance |
1 KΩ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
