 PRE-Amplifier |
|
|
4 Band Graphic Equalizer Equalizer
W/ Subwoofer Out
|
| |
|
FEATURE
-
Active gain
pre-amplifiers with adjustable input sensitivity
-
Individual left
and right sensitivity control for RADIO & AUX
-
Specific
bandwidth for each band plus high frequency shelving
-
Low noise BI-FET
op-amp design yields minimum distortion
-
Subwoofer
frequencies adjustable (30 Hz ~ 250 Hz )
-
Gold Plated RCA
input Connectors
|
| |
|

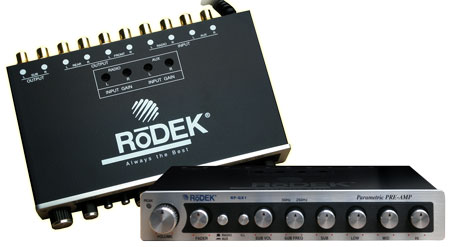

Model |
RP-QX 1 |
|
SPECIFICATIONS
|
|
4 Band Parametric |
SUB 55 Hz
LOW 180 Hz
MID 2.2 KHz
HI 18 KHz |
|
Boost/Cut |
18 dB |
|
Bandwidth |
Specific To Reach Each Band Hi
Shelving |
|
S/N Ratio |
110 dB REF 1 V Input |
|
Frequency Response |
20 Hz ~ 27 KHz 1 dB |
|
Max Output Voltage |
10 VRMS |
|
T.H.D |
0.0017 % |
|
Input Sensitivity |
Adjustable 50 mV ~ 3 V RMS |
|
Headroom |
20 dB |
|
Input Impedance |
20 KΩ |
|
Stereo Separation |
76 dB / 1 KHz |
|
Operating Voltage |
11 ~ 15 V Neg. Ground |
|
Output Impedance |
10 KΩ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
