 Active Crossover |
|
|
 |
| |
|
FEATURE
- 2/3 Way Electronic Crossover
With Remote Control
- Detented Frequency Selection
Control
- Gold RCA input and out put
Connectors
- POWERLOCK Power , Ground
and Remote control
- PWM Power Supply
- LED Power Indicator
|
| |
|

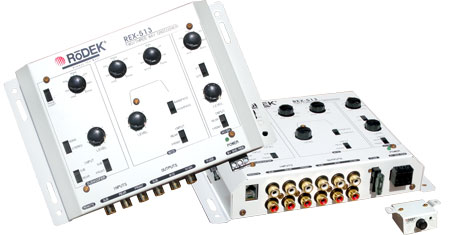

Model |
REX-513 |
|
SPECIFICATIONS
|
|
CROSSOVER FREQUENCIES |
Subwoofer Low Pass 40 Hz – 800 Hz
Mid High Pass 40 Hz – 800
KHz
Mid Low Pass 800 Hz – 16 KHz
High Pass 800 Hz – 16 KHz |
|
Input Current |
0.5 amp max |
|
Output Voltage level |
7 volts max |
|
Power supply |
10~16 V DC negative ground |
|
Distortion |
0.01% THD at 1 KHz |
|
S/N Ratio |
100 dB |
|
Separate |
-60 dB |
|
Frequency Response |
30 Hz ~ 56 KHz |
|
Selectable Crossover Frequency
|
Round VR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
