 PRE-Amplifier |
|
5 Band PARAMETRIC EQUALIZER PRE-AMP
5 CHANNEL SEPARATE CONTROL
|
| |
|
FEATURE:
|
| |
|

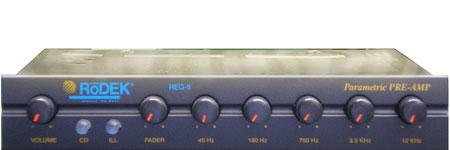

Model |
REQ 5 |
|
SPECIFICATIONS
|
|
Sub Bass Equalizer Frequency |
45 Hz |
|
Bass Equalizer Frequency
|
180 Hz |
|
MID Bass Equalizer Frequency |
750 Hz |
|
HI-MID Equalizer Frequency |
3.5 KHz |
|
Treble Equalizer Frequency |
12 KHz |
|
Parametric Equalizer Range |
± 18 dB |
|
S/N Ratio |
80 dB REF 1V Input |
|
Frequency Response |
10 Hz ~ 50 KHz ± 1 dB |
|
Maximum Output Voltage |
7 V RMS |
|
T.H.D |
0.05% |
|
Input Impedance |
20 K Ω |
|
Stereo Separation |
80 dB / 1 KHz |
|
Subwoofer Frequency Range |
60 Hz ~ 90 Hz |
|
Operation Voltage |
11 ~ 15 VDC Negative |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
