 DVD / VCD / MP3 / CD Player |
|
|
 |
| |
FEATURE:
| USB |
SD
Card |
MMC
Card |
| USB
Recording |
MP 4 |
MP3 |
|
Kodak CD |
AC-3
|
Jpeg |
| DVD
|
CD |
VCD |
| DIVX |
Super Tuner |
WMA |
|
| |
|

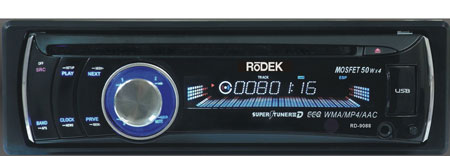

Model |
RD- 9088
|
|
SPECIFICATIONS
|
|
Power
Requirements |
12 VDC |
| GND Connection |
Negative |
Max Current
Consumption
|
7.0 A
|
Audio |
| Maximum Power
Output |
50 W x 4 |
|
Speaker
Impedance |
4 Ω |
| Bass |
± 7 dB (100 Hz) |
|
Treble |
± 7 dB (10 KHz) |
| |
|
|
DVD
Player Section |
| ESP - DVD |
4s |
|
- VCD |
10s |
| S/N Ratio |
85 dB(A) |
|
Frequency
Response |
20 ~ 20 KHz |
| RCA Line
Output |
1.8V max (Adjustment) |
|
RCA Video
output |
1 Vp-p |
Antenna
Control
|
12 V (500mA)
|
|
FM
Tuner |
|
Tuning range |
87.5 ~ 108 MHz |
| Usage
sensitivity |
14 dB |
|
S/N ratio |
60
dB |
| Harmonic
Distortion |
< 1% (1 KHz) |
|
Frequency
Response |
30 ~ 15 KHz |
| Separation |
35 dB |
| |
|
|
AM
Tuner |
|
Tuning Range |
522 ~ 1620 KHz |
| Usable
Sensitivity |
36 dB |
|
| |
