 Amplifier Set |
|
|
|
| |
|
FEATURE:
|
| |
|
Model |

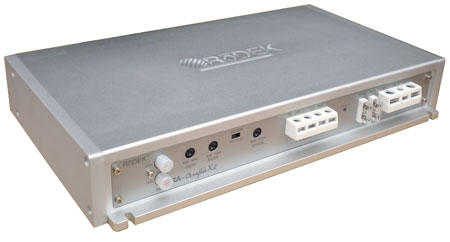

RA Graphic
X 2 |
RA Graphic
X 4 |
RA Graphic
X 5 |
|
SPECIFICATIONS
|
|
Channels |
2 / 1
Channel |
4 / 3 / 2
Channel |
5 / 4 / 3
Channel |
|
RMS Power
( 4 Ω ) |
2 x 100
Watts |
4 x 60
Watts |
4 x 60
Watts
1 x 150 Watts |
|
RMS Power
( 2 Ω ) |
2 x 150 Watts |
2 x 150 Watts |
4 x 90 Watts
1 x 230 Watts |
|
RMS Bridged (4Ω) |
1 x 300 Watts |
1 x 300 Watts |
2 x 180 Watts
1x 150 Watts |
|
Signal to
Noise Ratio |
> 90 db |
> 90 db |
> 90 db |
|
T. H. D. |
<0.05% |
<0.05% |
<0.05% |
|
Separation @ 1 KHz |
> 60dB |
> 60 dB |
> 60 dB |
|
Frequency Response |
10 Hz ~ 50 KHz |
10 Hz ~ 50 KHz |
10 Hz ~ 50 KHz |
|
Input Sensitivity |
200 mV ~ 4 V |
200 mV ~ 4 V |
200 mV ~ 4 V |
|
Bass EQ |
0~ 12dB |
0~12dB |
0 ~ 12dB |
|
Crossver(Butter worth) |
HP 40 ~ 250 Hz
LP 40 ~ 250 Hz |
HP 40 ~ 250 Hz
LP 40 ~ 250 Hz |
HP 40 ~ 250 Hz
LP 40 ~ 250 Hz |
|
Input Impedance |
> 20K Ω |
> 20K Ω |
> 20K Ω |
|
Idle Current |
0.7 A |
< 0.8 A |
< 1.0A |
|
Damping Factor |
> 150 |
> 150 |
> 150 |
|
Fuse Rating |
2 x 25 Amp |
2 x 30 Amp |
4 x 25 Amp |
|
| |
|
| |
|
|
