 PRE-Amplifier |
|
|
Crossover Equalizer Line Driver |
| |
|
FEATURE
- Adjustable Input
Sensitivity (Front, Rear, Aux)
- PWM Power Supply
- Auxiliary Input
- Green/Blue Back Lighting
- Ground Insulation Switch
- Independent Adjustment of
the Low, Mid, High pass crossover filters
- Gold plated RCA input/
output leads
|
| |
|

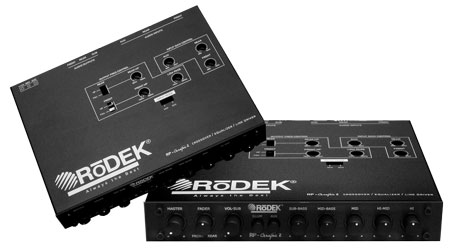

Model |
RA-GRAPHIC 2 |
|
SPECIFICATIONS
|
|
Operation Power Supply |
9 ~ 16 VDC |
|
Preamp Input Level |
120 mV ~ 4 V RMS |
|
Frequency Response |
10 Hz ~ 100 KHz |
|
Total Harmonic Distortion |
0.007% |
|
Input Impedance |
20 KΩ |
|
Output Impedance |
150 Ω |
|
Maximum Output |
8 VRMS |
|
Equalization Cut and Boost |
± 12dB |
|
S/N Output |
103 dB |
|
Channel Separation |
82 dB |
|
Fuse Rating |
2 A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
