 PRE-Amplifier |
|
|

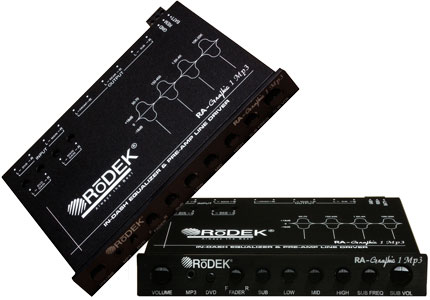

In Dash Equalizer Pre-Amp Line
Driver |
| |
|
FEATURE
- Active gain preamplifier
with adjustable input sensitivity
- Rotary adjustable center
frequencies on all four bands
- Specific bandwidth for each
band plus high frequency shelving
- Low noise BI-FET op-amp
design yields minimums distortion
- Gold-plated RCA input
connectors
- Auxiliary Input for MP3
- Individual left & Right
gain controls for AUX input
|
| |
|
Model |
RA-GRAPHIC 1 Mp3 |
|
SPECIFICATIONS
|
|
Adjustable Parametric
Frequencies |
Sub 20 ~ 60 Hz
LOW 120 ~300Hz
MID 1.0 ~ 2.4 KHz
HIGH 7.0 ~ 20.0 KHz |
|
Boost / Cut |
18 dB |
|
S/N Ratio |
100 dB |
|
Frequency Response |
10 Hz ~ 50 KHz ± 1dB |
|
Maximum Output Voltage |
7 V RMS |
|
THD |
0.005 |
|
Input Sensitivity |
50 mV ~ 3 V RMS |
|
Head Room |
20 dB |
|
Input Impedance |
10 K Ω |
|
Output Impedance |
50 K Ω |
|
Stereo separation |
82 dB / 1KHz |
|
Operating Voltage |
11 ~ 15 V Negative Ground |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
