 DVD / VCD / MP3 / CD Player |
|
|
 |
| |
|
FEATURE
-
DVD/VCD/CD/MP3/CD-R/CD-RW
PLAYER
-
AM/FM-MPX 2Band
Radio
-
On screen
display Title / Time/ Chapter/ Subtitle and Angle
-
30 Station
Memory (18FM/12 AM)
-
Fold down
detachable front panel
-
Auto
Store/Preset scan function
-
Treble/Bass/Balance/Fader/Volume Control
-
LCD digital
display
-
Mute Function
-
LO/DX control
-
Clock Function
-
Preset EQ
-
Sub-woofer
-
ESP Function
-
PAL/NTSC Color
System
-
A/V Input & A/V
Output
-
PLL Systhesizer
Tuner
-
Repeat
/Intro/Random Function
-
Dolby Digital
Coaxial Outputs
-
MO/ST Selector
-
Anti-Shock
Mechanism
-
Remote COntrol
-
RCA line out
|
| |
|

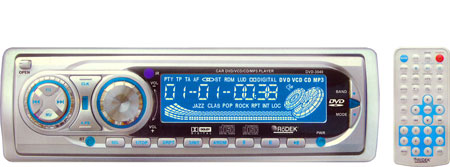

MODEL |
DVD 3040
|
|
SPECIFICATIONS
|
|
Supply Voltage |
12 V DC
(11V-15V) |
| Current
Consumption |
less than 10 A |
|
Signal System |
Compositive
video 1.0 Vp-p 75Ω |
| Discs played |
(1)DVD-Video |
5"(12 cm)
single-sided, single layer |
| |
|
5"(12 cm)
single-sided, double layer |
| |
(2)(CD-DA, VIDEO CD) |
5" (12 cm)
disc |
| Audio Signal
Output |
2 Channel & 4
Channel line out |
|
Characteristics |
(1) Frequency
Response |
20 Hz ~
20 KHz |
| |
(2) S/N Ratio |
90 dB (JIS) |
| |
(3) WOW and
Flutter
|
Below
measurable limits
|
RADIO |
|
|
Europe FM |
USA FM |
|
Frequency
Coverage |
87.5 ~
108 MHz |
87.5 ~ 107.9
MHz |
| IF |
10.7 MHz |
10.7 MHz |
|
Sensitivity
(S/N = 30 dB) |
15 dBu |
15 dBu |
| |
MW |
AM |
|
Frequency
Coverage |
522 ~
1620 KHz |
530 ~
1710 KHz |
| IF |
450 KHz |
450 KHz |
|
Sensitivity(S/N
= 20dB) |
40 dBu |
40 dBu |
|
|
|
|
|
LW |
|
Frequency
Coverage |
144 ~ 290 Khz |
|
| IF |
450 KHz |
|
|
Sensitivity(S/N=20dB) |
45 dBu |
|
|
| |
