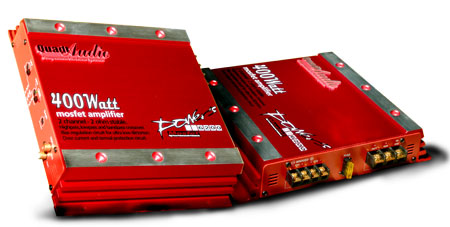

 AMPLIFIER |
|
 |
| |
|
2/1 Channel
Car Amplifier
|
|
FEATURE
-
Total Output
power all channel : 400 Watt maximum
-
Bridgeabl for
high power subwoofer use
-
2 Ω stable
stereo
-
Built in
High/Low and Bandpass crossover
-
Low noise and
low distortion input stage
|
| |
Model |
QA 6200 |
|
SPECIFICATIONS
|
| Channels |
2 / 1 Channel |
| RMS Power ( 4 Ω) |
2 x 50 Watt |
| RMS Power (2 Ω) |
2 x 80
Watt |
| RMS Power Bridged (4 Ω) |
1 x 160
Watt |
| Frequency Response |
10 Hz ~
30 KHz |
| Signal to Noise Ratio |
> 98 db |
|
T.
H. D. |
<0.05% |
| Input Sensitivity |
200mV ~
2 V |
| Input Impedance |
22 KΩ |
| Subwoofer Filter |
30 ~ 500
Hz / 12 dB |
| High Pass Filter |
30 ~ 400
Hz / 12 dB |
| Damping Factor |
> 160 |
| Fuse Rating |
20A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
