 AMPLIFIER |
|
 |
| |
|
4 Channel Bridgeable Power Amplifier
with Mosfet power supply |
|
FEATURE
-
Digital
Pulse-width-modulated regulated power supply
-
Mosfet power supply devices
-
Fully complementary
discrete audio stages
-
Direct coupled output stage
-
Discrete output transistors
-
Low overall negative
feedback
-
2 Ω Stable in stereo mode
-
Bridgeable to mono
operation
-
Stereo/ Mono setup
simultaneously
-
4 way protection
circuit-thermal, current, D.C. Moffset, and overvoltage
-
Soft start delayed turn-on
-
Increased surface area and
mass for continuous heat dissipation
-
LED power on indicator
|
| |
|

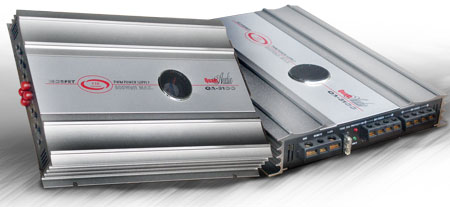

Model |
QA 3100 |
|
SPECIFICATIONS
|
| Output Power
4Ω |
4 x 50
Watts |
| Output Power
2Ω |
4 x 80
Watts |
| Bridge Mono |
2 x
100 Watts |
| T.H.D |
< 0.1 % |
| Frequency Response |
10 Hz ~
40 KHz ± 1dB |
| S/N Ratio |
> 85 dB |
| Input Sensitivity |
200 mV |
| Bass Boost |
12 dB |
| Speaker Impedance |
2 ~ 16
Ω |
| Power Fuse |
25 A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
