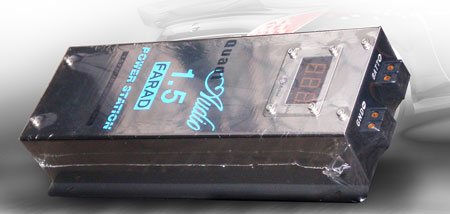

 Power Capacitor |
|
 |
| |
FEATURE
-
Soft turn on
(No Surge current)-8 sec delay
-
Over voltage
protection - 15.5 V cut off (Display Hi)
-
Low Voltage
protection - 10.5 V cut off (Display Lo)
-
Short circuit
protection.
-
Reverse
polarity Protection
-
Controlled
Voltage stabilization
-
Digital Voltage
level display and monitored voltage
-
Low operation
current less than 100mA
-
Do not remove
wire
|
| |
|
Model |
CPB 1.5D |
|
SPECIFICATIONS
|
| Capacitance |
1,500,000 micro Farad ( 1.5 farad ) |
| VDC |
16 V
max, 20 V surge |
|
E.S.R |
<2.5 MΩ |
|
Tolerance |
0% ~ +
20% |
|
Tools |
3mm
Allen Wrench |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
