 AMPLIFIER |
|
|
5 Channel Amplifier |
| |
|
FEATURE
-
PCX amplifiers
utilize a versatile combination of features like fully
variable TC-X
crossovers, QBASS equalization and the all-new
Advanced
instrumentation Input. These technologies have trickled
down from
nearly 20 years worth of engineering expertise, from the
days of the
2350DM, to the uncomparable 2500F1. New PCX amplifiers
deliver the
ultimate in performance, raw power and sonic purity.
|
| |
|
Model |

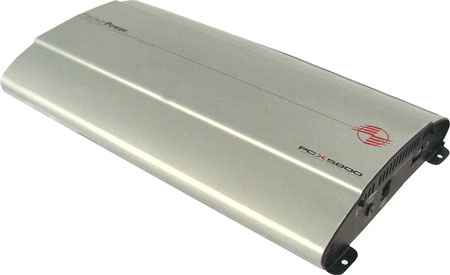

PCX 5800 |
|
SPECIFICATIONS
|
|
Power Rating 4Ω |
50 W x 4 + 200W |
|
Power
Rating 2Ω |
100 W x 4 +
400W |
|
Power
Bridged 4Ω |
200 W x 2 + 400 W |
|
Power Guage |
4 |
|
THD |
0.02% |
|
S/N Ratio |
>110dB |
|
Frequency Response |
4.5-100KHz |
|
I/P SENS |
0.15-12V |
|
Damping |
>500 |
|
QBass Equalizer |
QBass+Fan |
|
Dimension (WxDxH) |
22.5"x 10"x 2.375" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
