 AMPLIFIER |
|
|
2 Channel Amplifier
|
| |
|
FEATURE
-
PCX amplifiers
utilize a versatile combination of features like fully variable
TC-X
crossovers, QBASS equalization and the all-new Advanced
instrumentation Input. These technologies have trickled down from
nearly 20 years worth of engineering expertise, from the days of the
2350DM, to the uncomparable 2500F1. New PCX amplifiers deliver the
ultimate in performance, raw power and sonic purity.
|
| |
|
Model |

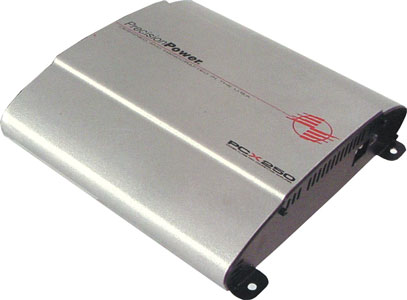

PCX 250 |
PCX 280 |
|
SPECIFICATIONS
|
|
Power Rating 4Ω |
50 W x 2 |
80 W x 2 |
|
Power
Rating 2Ω |
100 W x 2
|
160 W x 2
|
|
Power
Bridged 4Ω |
200 W x 1 |
320 W x 1 |
|
Power Guage |
8 |
8 |
|
THD |
0.02% |
0.02% |
|
S/N Ratio |
>110dB |
110dB |
|
Frequency Response |
4.5-100KHz |
4.5-100KHz |
|
I/P SENS |
0.15-12V |
0.15-12V |
|
Damping |
>500 |
>500 |
|
QBass Equalizer |
QBass |
QBass |
|
Dimension (WxDxH) |
9.75 x 10"x 2.375" |
11.75"x10"x2.375" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
