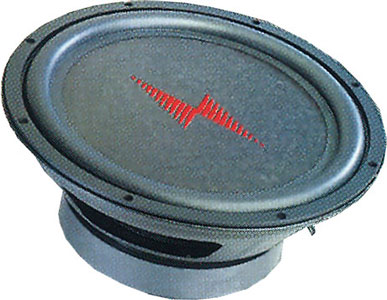

SUBWOOFER







FEATURE

  • E-Glass/Nomex Honeycomb ACDS extremely rigid diaphragm for more
    accurate response
  • Long Field Motor Structure for longer powered excursion.
  • Extended Dual Vented Pole Piece offers better magnetic and thermal
    transfer.
  • Dual complementary Spiders and Composite Poly Foam Surround give
    greater linear control over larger excursions
  • Ferrofluid Cooling enhances power handling while increasing mechanical damping. Foam Padded Lead in Wires eliminate tinsel lead vibration
    noise commonly found in other speakers.



 Model

PC 104

PC 108

SPECIFICATIONS

SubWoofer Size 10" 10"
Frequency Response 25Hz ~ 1KHz 25Hz ~ 1KHz
Power Rating 200Watts RMS 200Watts RMS
Sensitivity (SPL at 1W) 88.16 dB 88.16 dB
Impedance
Enclosure sealed .75 -1.25cubic feet sealed .75 -1.25cubic feet
Voice coil type/Former Two Layer /Anodized Aluminum Two Layer /Anodized Aluminum
Diaphragm Materail E-Glass/Nomex Honey combe E-Glass/Nomex Honey combe
Basket Material Steel Steel
