 AMPLIFIER |
|
|
Mono Block Amplifier
|
| |
|
FEATURE
-
Regulated
Design for guaranteed power delivery
-
1 ohm
stable - prefect for extreme SQL applications
-
Externally
bridgeable in pairs for extreme power applications
-
Q Bass™
Plus remote
|
| |
|
Model
|

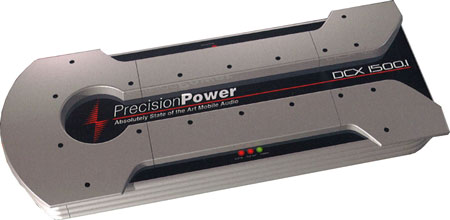

DCX 1500.1
|
|
SPECIFICATIONS
|
| Power
Rating 4Ω |
500 W x 1 |
|
Power Rating
2Ω |
1000 W x 1 |
|
Power Bridged
4Ω |
1500
w x 1 |
|
THD +N |
0.08% |
| S/N
Ratio |
> 80dB |
|
Frequency Response |
20 Hz~ 200Hz |
| Damping
Factor |
>50 |
|
X-Over Type, Range,
Slope |
2-Way, 30Hz~250Hz,24dB
Octave |
| Fan |
No |
|
Q-Bass Level |
Q-Bass Plus/Remote |
| Dimension
(inch) |
24-3/4
10-1/2
2 -3/4 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
