AMPLIFIER

Four Channel Amplifier




FEATURE

  • Fully Regulated Adaptive MOSFET Switching Power Supply.
  • Fully Symmetrical Dual Differential High Current Design.
  • Fully Complementary Matched Bi-polar Output Stage.
  • Dual Balanced Differential Input Stage
  • Mixed Mono / Stereo Operation.
  • Gold Plated RCA Input And Output Connectors
  • Variable Phase (0~180) and Q.Bass(0~+18 dB) control.
  • Completely Designed and Handcrafted in the USA by Power Amper

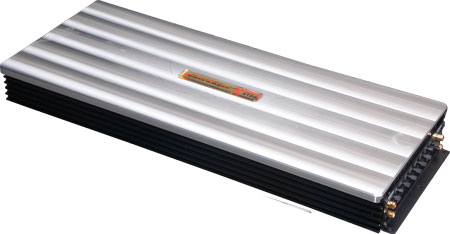

 Model

XP 4100

SPECIFICATIONS

Power Rating 4Ω 4x 100 W
Power Rating 2Ω 4 x 200 W
Power Rating 4Ω Bridge 2 x 400 W
Power Bandwidth(Hz) 10~80KHz
T.H.D 0.02%
S/N Ratio > 110 dB
Input Sensitivity 0.2~5V
Damping Factor >400
Slew rate >50V/S
Channel Separate >90 dB
input impedance 22 KΩ
X-over/slope 18dB /oct
Supply Voltage 10.5~16 Volts
Load Impedance 2~8Ω
Load Impedance 4~8Ω
Front 18 dB/Octave, Selectable Detente High Pass 70 ~ 250 Hz or
Q.Bass at 45 Hz (0~+18 dB)
Rear 18 dB/Octabe , Selectable Detente High Pass 70 ~ 250Hz or
Low Pass 25~250Hz
Q.Bass at 45Hz(0~+18dB)
