 AMPLIFIER |
|
|
 Two Channel
Amplifier |
| |
|
FEATURE
- Fully Regulated Adaptive
MOSFET Switching Power Supply.
- Fully Symmetrical Dual
Differential High Current Design.
- Fully Complementary Matched
Bi-polar Output Stage.
- Dual Balanced Differential
Input Stage
- Mixed Mono / Stereo Operation.
- Gold Plated RCA Input And
Output Connectors
- Variable Phase (0~180°) and
Q.Bass(0~+18 dB) control.
- Completely Designed and
Handcrafted in the USA by Power Amper
|
| |
|

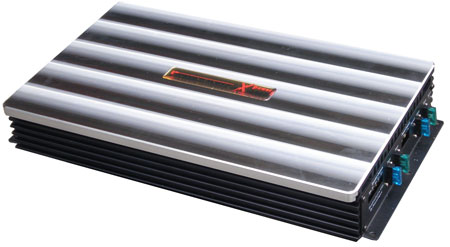

Model |
XP 2100 |
SPECIFICATIONS |
|
Power Rating 4Ω |
2x 100 W |
|
Power Rating 2Ω |
2 x 200 W |
|
Power Rating 4Ω Bridge |
1 x 400 W |
|
Power
Bandwidth(Hz) |
10~80KHz |
|
T.H.D |
0.02% |
|
S/N Ratio |
> 110 dB |
|
Input Sensitivity |
0.2~5V |
|
Damping Factor |
>400 |
|
Slew rate |
>50V/µS |
|
Channel Separate |
>90 dB |
|
input impedance |
22 KΩ |
|
X-over/slope |
18dB /oct |
|
Supply Voltage |
10.5~16 Volts |
|
Load Impedance |
2~8Ω |
|
Load Impedance |
4~8Ω |
|
Input Signal |
Selectable Full Range or
X-over 18dB/Octave. |
|
High Pass Range |
18 dB/Octave 70~250 Hz |
|
Low Pass Range |
18 dB/Octave 25~250 Hz |
|
Q.Bass |
0~+18 dB at 45 Hz(Low Pass
Only) |
|
Phase |
0~+180° (Low Pass Only) |
|
| |
