AMPLIFIER

Mono Block Amplifier




FEATURE

  • Fully Regulated Adaptive MOSFET switching power supply
  • Fully Symmetrical Dual Differential High Current Design
  • Fully Complementary Matched Bi-polar Output Stage
  • Dual Balanced Differential Input Stage
  • Mixed Mono / Stereo Operation
  • Gold Plated RCA Input and Output Connectors
  • Variable Phase (0~180 ) and Q.Bass (0~18dB) control

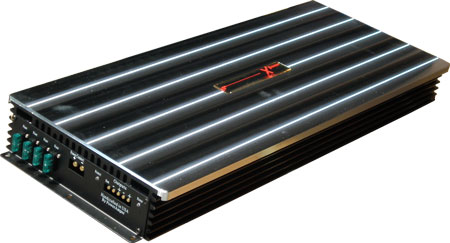

 Model

XP 1600

SPECIFICATIONS

Power Band Width 10Hz ~ 80 KHz
Total Harmonic Distortion 0.02%
Signal To Noise Ratio > 110 dB
Input Sensitivity 200 mV ~ 5 Vrms
Damping Factor > 400
Channel Separate > 90 dB
Slew Rate > 50 V/s
Input Impedance 22 KΩ
Supply Voltage 10.5 ~ 16 V
X-over / Slope 18 dB / Oct
Load Impedance (Stereo) 2 ~ 8 Ω
Load Impedance (Bridge) 4 ~ 8 Ω
