Crossover

Active Crossover




FEATURE

  • Variable Frequency Crossover
  • Input can be combined to allow a signal input pair to feed all filters
  • Separate pair of RCA
  • High Voltage output

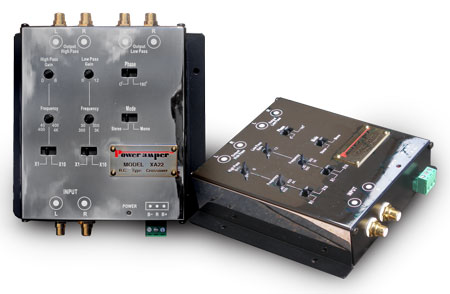

 Model

XA-22

SPECIFICATIONS

Frequency Response 3 Hz ~ 100 KHz
Total Harmonic Distortion < 0.005%
Signal To Noise Ratio > 120 dB
Maximum Output 5 Volts RMS
Input Sensitviity 0.2 V ~ 5 V
Input Impedance 22 K Ω
Crossover Slope 18 dB / Octave
Supply Power 8.5 V ~ 15.5 V
Low Pass Range 30 Hz ~ 3 KHz
High Pass Range 40 Hz ~ 4 KHz
Phase Control 0 degree ~ 180 degree
Q, Boost Control 0 dB ~ + 18 dB
Idle current < 200 mA
