 AMPLIFIER |
|
|

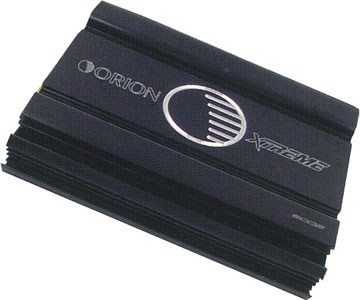

4 Channel Amplifier
|
| |
|
FEATURE
- Separate left/right
gain and phase controls
- Selectable auxiliary
output Variable high pass,
low pass 45Hz to 5KHz, or
band pass crossover
- Intelli Q bass
optimization circuit with gain remote
- 4 gauge speaker
- 12 gauge speaker
- PRS power supply
- Complimentary matched
Bi-polar output
- Traditional Orion
fly-cut
- 100% QC tested
|
| |
|
Model |
XTR 8004 |
SPECIFICATIONS |
|
Channels |
4 CH |
| Power Rating at 4Ω |
4 x 100 W |
|
Power Rating at
2Ω |
4 x 200 W |
| Power Bridge
at 4Ω |
2 x 100W + 1 x 400W |
|
Power Bridge
at 4Ω |
2 x 400 W |
| Impedance |
4 Ω |
|
Crossover |
45Hz~5KHz |
Dimension
(WxDxH) mm |
457 x 260 x 57 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
