 SUBWOOFER |
|
|
Dual Coil
|
| |
|
FEATURE
- Power Handling 500
Watts RMS / 1000 Watts Peak
- Machined Die-cast
Basket
- Open loop motor design
- Metalized Poly Cone
and Medium Roll NBR surround
- Tight Small Sealed Box
Performance
- Custom Tooled
Reversible Warp Gasket and Protective Magnet Boot
- Heavy Gauge Wire
Terminals
- 2.5 Inchs Voice Coil
on Aluminum Former
|
| |
|

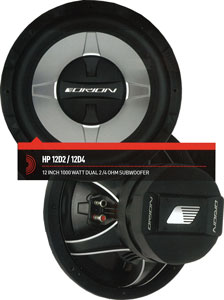

Model |
HP 12 D4 |
SPECIFICATIONS |
|
Woofer |
12" |
|
Power Handling |
500/1000 peak |
|
impedance |
4 Ω |
|
Fs. |
27.75 Hz |
|
Qts. |
.56 |
|
Vas |
1.78 cuft |
|
Sensitivity |
85 dB |
|
Linear Excursion |
14 mm |
|
Dimension |
11 " / 7" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
