 AMPLIFIER |
|
|
2 Channel Amplifier &
Mono Block capability
|
| |
|
FEATURE
- 0.5 Ohm optimized
- Separate Left/right
gain controls
- Separate Left/right
phase controls
- Selectable auxiliary
output
- Variable high pass,
low pass, or bandpass crossover
- INTELLi QBass
optimization circuit
- Remote gain capability
- 4 gauge power/ground
- 12 gauge speaker
- PRS power supply
- Complimentary matched
Bi-polar outputs
- Optimized for
competition power classes
- Traditional ORION
fly-cut graphic
- 100% QC Tested
|
| |
|
Model |

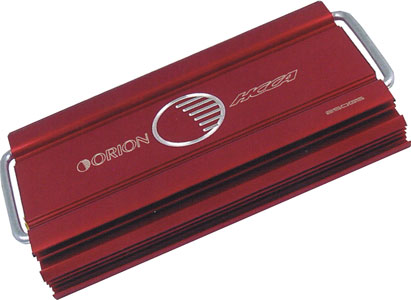

HCCA 250 |
SPECIFICATIONS |
|
Channels |
2 CH & Mono |
| Power Rating at 4Ω |
2 x 50 W |
|
Power Rating at 2Ω |
2 x 100W |
| Power Rating at
1Ω |
2 x 200W |
|
Power Rating at
0.5Ω |
2 x 400W |
| Power Bridge at
4Ω |
1 x 200W |
|
Power Bridge at
2Ω |
1 x 400W |
| Power Bridge at
1Ω |
1 x 800W |
|
Dimension(WxDxH) mm |
457 x 260 x 57 mm |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
