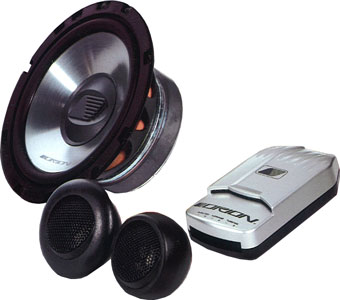

 Component
Speaker |
|
|
|
| |
|
FEATURE
- Steel baskets fit
standard OEM applications
- Euro-compatible design
- 19mm ceramic dome
tweeters with swivel flush and surface mount harness
- Outboard passive
crossovers with 12dB/ octave slope
|
| |
|
Model |
C5.2 |
C6.2 |
SPECIFICATIONS |
|
Driver |
5¼" Woofer |
6½" Woofer |
|
Power Nominal/Musical |
50 /100 Watts |
75/125 Watts |
|
Nominal Impedance |
4 Ω |
4Ω |
|
Frequency Response |
750Hz - 20KHz |
60Hz - 20KHz |
|
Sensitivity |
89 dB |
90 dB |
|
Depth |
2 3/8" / 67mm |
2 3/4" /76mm |
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
| |
|
|
