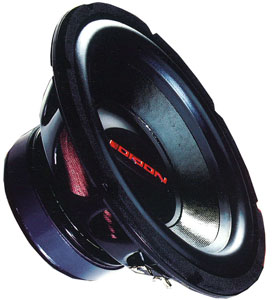

 SUBWOOFER |
|
|
Dual Coil
|
| |
|
FEATURE
- Orion-designed steel
basket with rolled edges
- Mass-added paper cone
and NBR surround
- Poly cotton blend
spider and extended vented pole piece
- Gold-plated
strain-relief terminals
|
| |
|
Model |
C 10 D2 |
C 10 D4 |
SPECIFICATIONS |
|
Woofer |
10" |
10" |
|
Power Handling |
200/400 peak |
200/400 peak |
|
impedance |
2 Ω |
4 Ω |
|
Fs. |
40 Hz |
42 Hz |
|
Qts. |
.481 |
.630 |
|
Vas |
1.58 cuft |
0.69 cuft |
|
Sensitivity |
84.9 dB |
90.9 dB |
|
Linear Excursion |
8 mm |
8 mm |
|
Dimension |
9.0" / 4.875" |
9.0" / 4.875" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
