 AMPLIFIER |
|
|
Mono Block Amplifier
|
| |
|
FEATURE
- Selectable 12/24 dB/octve
variable low pass filter
- Switchable phase
invert function
- Intelli-Qtm
Bass optimization circuit and remote gain option
- Separately adjustable,
selectable variable high pass filter with proprietary
Copy/Master control circuit for RCA outputs
- Copy/Master feature
supports gain and crossover adjustment matching in
multiple amp applications
- Allows external
bridging of two match gain amplifier
- Heavy guage
direct-wire high current satin finish power and speaker
terminal
|
| |
|
Model |

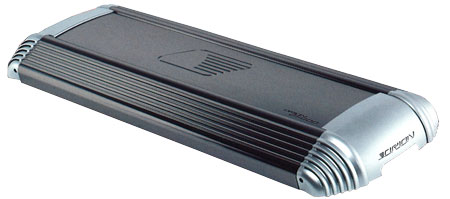

2500D |
SPECIFICATIONS |
|
Channels |
1 CH |
| Power Rating at 4Ω |
1 x 1200 W |
|
Power Rating at 2Ω |
1 x 1700 W |
| Power Bridge at
1Ω |
1 x 2500 W |
|
Impedance |
4 Ω |
| THD + N |
1% |
Signal to Noise Ratio
(@1 W into 4Ω ) |
-50dBA |
| Crossover |
30~250Hz |
Dimension
(WxDxH) mm |
691 x 267 x 58 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
