 Amplifier |
|
|
|
| |
|
FEATURE
- 2 Channel Amplifier
- Digital LED Status Display For Amp Power , Voltage , Temp & More
- Surface Mounted Controls
- FUlly Adjustable 24 dB Per Octave Crossover
- Adjustable Subsonic Filter
- RJ11 Jack For Optional Remote Control
- 4 AWG Molded Terminals
- 1 Ω Stable
- 0~18 dB Adj. Bass Boost
- Aluminum & Stainless Chassis
- Die Cast Aluminum Cooling Rods
|
| |
|

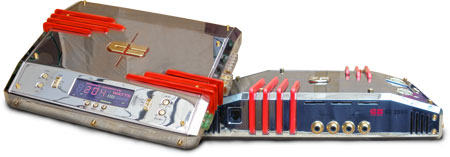

Model
|
GS-2000
|
|
SPECIFICATIONS
|
| Output
Power Rating |
|
|
|
4 Ω Stereo |
100W x 2 |
| |
2
Ω Stereo |
175
W x 2 |
|
|
1 Ω Stereo |
225 W x 2 |
| |
4
Ω Bridged |
350
W x 1 |
|
|
2 Ω Bridged |
450 W x 1 |
| Frequency
Response -3dB |
10
Hz ~ 40 KHz |
|
Damping Factor |
> 250 |
| S/N
Ratio (A-weighted) |
>
95 dB |
|
THD |
<0.03% |
| Channel
Separation |
>
85 dB |
|
Input Gain Control |
200 mV ~ 6.0 V |
| Input
Impedance |
47
K Ω |
|
Crossover (CH 1& 2) |
HI/FULL/LOW |
| Variable
HI-PASS |
80
Hz ~ 5 KHz |
|
Variable LOW-PASS |
35 Hz ~ 250 Hz |
| Subsonic
Filter |
27
Hz / 37 Hz / OFF |
|
Bass Boost at 42 Hz |
0 dB ~ 18 dB |
| Line
Output |
Full |
|
Phone Jack Remote |
Yes |
|
| |
|
| |
|
|
