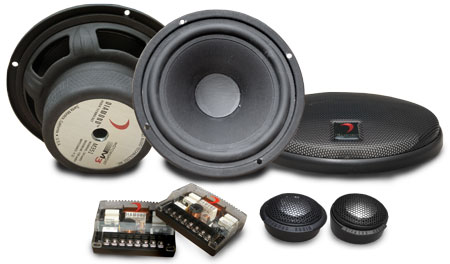

 COMPONENT SPEAKER |
|
|
 |
| |
|
FEATURE
- Textured, High
Mineral Content, Co-polymer Cones - Micro textured
to
dissipate high frequency distortion.
- Proprietary Frames
- Heavy gauge for increased stiffness, low
resonance.
- Extended Air Gap -
Increases magnetic linearity beyond typical X-max.
- Hi-Temp Kapton
Former - Won't deform at high power.
- Competition Grade
crossover - Audiophile components. Model specific.
Rear Acoustic Fill output.
- Intercooled Motor
Design - Forced cool air system surrounds the Voice
Coil.
- Rubber Magnet Cover
- Protects our high energy magnet. Great finish.
|
| |
|
MODEL |
M351 |
SPECIFICATIONS |
|
Driver |
5¼" Midbass |
|
|
1" Tweeter |
|
Power Handling |
40/80 Watt (Nom/Max) |
|
Impedance |
4 Ω |
|
Freq. Response |
63Hz~ 20KHz |
|
Sensitivity(2.83v 1m) |
90.5 dB |
|
Qts |
0.51 |
|
Fs |
63 |
|
Vas |
8.3 |
|
Rdc |
3.5 |
|
Xmax |
3.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
