 -CD Player |
|
|
 |
| |
|
FEATURE
- AM/FM
2 BAND RADIO
-
AUTO REVERSE CASSETTE PLAYER
-
AUTO LOADING CD MECHANISM
-
FULL LOGIC CASSETTE DECK
-
SCAN/REPEAT/RANDOM CONTROL FOR CD
-
CLOCK FUNCTION
-
LOUDNESS CONTROL
-
TREBLE / BASS/ BALANCE CONTROL
-
BIG SIZE LCD DISPLAY
-
FULL DETACHABLE SYSTEM
-
FULL NIGHT ILLUMINATION
-
RCA LINE OUT JACK
-
PLL SYNTHESIZER TUNER
|
| |
|

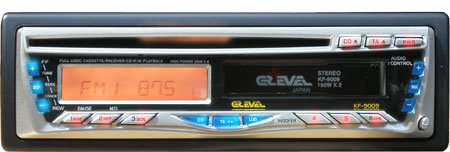

Model |
KF 9009 |
SPECIFICATIONS |
|
Power Supply Requirements |
DC 13.8 Volts, Negative Ground |
|
Maximum Output Power |
4 x 75 W |
|
Chassis Dimension |
178 [W] x 167 [D] x 50 [H] |
|
|
|
FM Section |
|
Frequency Range |
88 MHz ~ 108 MHz |
|
Usable Sensitivity |
10 dB |
|
Frequency Response(± 3dB) |
50 Hz ~ 12.5 KHz |
|
I.F. Rejection |
100 dB |
|
Image Rejection |
65 dB |
|
Signal To Noise Ratio |
60 dB |
|
Selectivity |
65 dB |
|
Stereo Separation |
30 dB |
|
Capture Ratio |
2 dB |
|
Antenna Impedance |
75 Ω |
|
|
|
AM TUNER SECTION |
|
Frequency Range |
522 KHz ~ 1620 KHz |
|
Usable Sensitivity (S/N 20 dB) |
20µV |
|
I.F. Rejection |
80 dB |
|
Image Rejection |
75 dB |
|
Antenna Impedance |
75 Ω |
|
|
|
TAPE SECTION |
|
WoW & Flutter |
0.1 % |
|
S/N Ratio[Normal] |
52 dB |
|
S/N Ratio [with Dolby] |
62 dB |
|
Separation |
50 dB |
|
Frequency Response |
50 Hz ~ 15 KHz |
|
|
|
|
CD
SECTION |
|
Disc Size |
5" |
|
Channels |
2 Channel Stereo |
|
Sampling Frequency |
44.1 KHz |
|
D/A converter |
Twin 1- bit |
|
Pickup |
Optical 3-beam semiconductor
laser |
|
Output filter |
Active |
|
Frequency Response |
5 Hz ~ 20 KHz |
|
Total Harmonic Distortion |
0.03%(1 KHz) |
|
Dynamic Range |
85 dB |
|
Signal To Noise Ratio |
90 dB |
|
Wow and Flutter |
Below Measurable limits |
|
Channel Separation (1 KHz) |
85 dB |
|
| |
