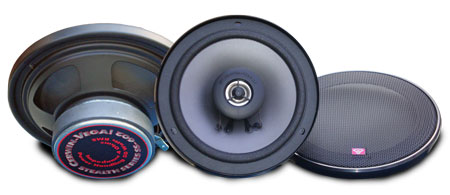

 Coaxial Speaker |
|
|
6½" Discrete Element Two-way Full
Range Loudspeakers |
| |
|
FEATURE
- Carbon graphite-filled
polypropylene cones and strontium-ferrite magnets
for a smooth,
natural sound with fast transient response
- High power handling and
high efficiency ensures a wide dynamic range
- Metal-alloy composite
midrange and balanced dome tweeters
- Polyether foam surrounds
that resist ultraviolet rays
- Point-source design for
accurate imaging
- Ergonomic,
industry-standard configurations for easy drop-in installation
into factory openings
|
| |
|
Model |
SS 602 |
SPECIFICATIONS |
|
Frequency Response |
45 Hz ~ 22 KHz |
|
|
90 Hz ~ 20 KHz ± 3 dB |
|
Power Handling |
50 W (nominal RMS) |
|
|
100 W (Maximum) |
|
Nominal Impedance |
4 Ω |
|
Sensitivity |
90 dB @ 1 watt/meter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
