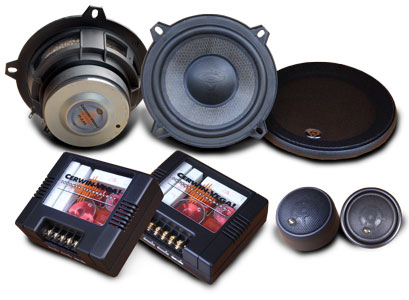

Component Speaker




FEATURE

  • Titanium dome tweeter with rubberized silk surrounds for an extraordinary
    linear response, even under the hardest drive conditions
  • High-energy neodymium tweeter magnet construction for high efficiency in
    a compact package that can be easily integrated into your car interior
  • Woven, crystal-fiber-laminated Nomex™ Honeycomb mid woofer cones
    provide excellent internal damping for a smooth, natural-sounding midrange frequency response
  • Natural butyl-rubber surrounds provide high-power linearity, even at
    maximum cone-excursion
  • Unique high-power 2-way, 18 dB per octave, passive crossover features a midrange contour, tweeter contour, and tweeter level circuitry, so that the system can be tuned to the acoustic characteristics of the car's interior
  • Aluminum die-cast mid-woofer frames for rigidity and long-term integrity



 Model

IT 5.02

SPECIFICATIONS

Power Handling 90 W (Nominal)
  180 W (Maximum)
Frequency Response 27 Hz ~ 22 KHz
  55 Hz ~ 20 KHz (± 3dB)
crossover  frequency 2500 Hz @ 18 dB/Octave
Nominal Impedance 4 Ω
Sensitivity 89 dB @ 1 Watt/ Meter
