 SUBWOOFER |
|
|
 |
| |
|
FEATURE
-
300 Watts RMS
Power Handling
-
High
Temperature Voice Coil
-
High Energy
Strontium Ferrite Magnet
-
Forced Air
Convection Cooling
-
Progressive
Rate, Flat Spider
-
Dual Voice Coil
|
| |
|
Model |

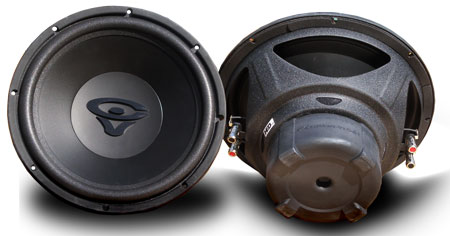

HED 12.4 |
SPECIFICATIONS |
|
Woofer Size |
10" |
|
No of Coils |
2 |
|
Sensitivity (2.8V @ 1 m) |
89 dB |
|
Power Handling RMS |
300 Watts |
|
Nominal Impedance |
4 Ω |
|
Voice Coil Dia. |
2" |
|
Mounting Dia. |
11 1/16" / 281mm |
|
Mounting Depth |
6 1/2" / 165 mm |
|
Spkr. Displacement |
0.094 ft³ / 2.7 litres |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
