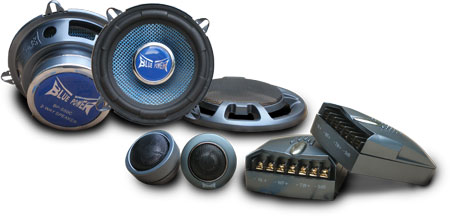

   COMPONENT SPEAKER




FEATURE

  • Sound diffusion horn with a 55° range
  • Ferro liquid cooled coil
  • Magnetic Neodymium mass with PEI cone dome tweeter
  • High technology Ferrite magnet woofer with carbon, polypropylene Kevlar cone
  • 12 dB/octave with poly switch protection


  Model

BP-S50C

SPECIFICATIONS
Frequency Response 90~22KHz
Midrange rater power 60W
Midrange maximum power 180W
Sensitivity 1w/1m 90 dB
Impedance 4 Ω
Nnominimpedance 3.4 Ω
Emitting surface 0.0104m²
Moving mass 8.4g
Free air resonance frequency FS 90 Hz
Mechanical Q factor 4.9 Qms
Total Q factor 1.15 Qts
Cut 114mm
Mounting Depth 54mm
