Model |
BP-H502 |
SPECIFICATIONS |
|
Frequency response |
90 Hz ~ 20 KHz |
|
Midrange rater power |
60 W |
|
Midrange maximum power |
180 W |
|
Sensitivity 1W/1M |
90 dB |
|
Impedance |
4 Ω |
|
Nnominimpedance |
3.4 Ω |
|
Emitting surface |
0.0104 m² |
|
Moving mass |
6.2 g |
|
Free air resonance frequency
FS |
90 Hz |
|
Mechanical Q factor |
4.5 Qms |
|
Total Q factor |
1.00 Qts |
|
Cut |
114 mm |
|
Mounting depth |
66 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

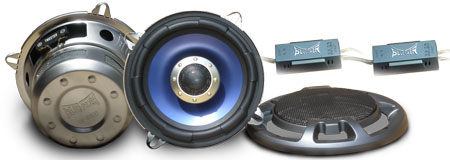

COAXIAL SPEAKER
