Model |
BP-H402 |
SPECIFICATIONS |
|
Frequency Response |
95 Hz ~ 20 KHz |
|
Midrange rater power |
50 W |
|
Midrange maximum power |
150 W |
|
Sensitivity 1W/1M |
89 dB |
|
Impedance |
4 Ω |
|
Nnominimpedance |
3.4 Ω |
|
Emitting surface |
0.0083 m² |
|
Moving mass |
4.1 g |
|
Free air resonance frequency
FS |
95 Hz |
|
Mechanical Q factor |
4.6 Qms |
|
Total Q factor |
1.20 Qts |
|
Cut |
92 mm |
|
Mounting Depth |
56 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

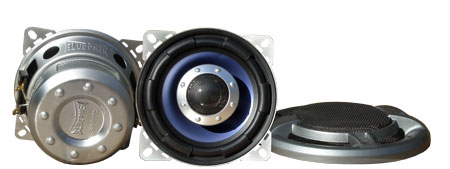

COAXIAL SPEAKER
