Model |
BP-G1001 |
SPECIFICATIONS |
|
Frequency Response |
100 Hz ~ 15 KHz |
|
Midrange rater power |
50 W |
|
Midrange maximum power |
100 W |
|
Sensitivity 1W/1M |
86 dB |
|
Impedance |
4 Ω |
|
Nnominimpedance |
3.4 Ω |
|
Emitting Surface |
0.0083m² |
|
Moving mass |
6.0 g |
|
Free air resonance frequency
FS |
120 Hz |
|
Mechanical Q factor |
3.5 Qms |
|
Total Q factor |
1.1 Qts |
|
Cut |
92 mm |
|
Mounting depth |
40 mm |
|
|
|
|
|
|
|
|
|
|
|
|

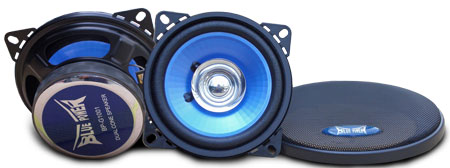

COAXIAL SPEAKER
