AMPLIFIER

Mono Channel Amplifier



FEATURE

  • SEPP A/B-Class Super Sport Amplifier Designs
  • Bridgeable Designs: ALL 2-CH & 4 CH
  • Illuminated, Large New Design Autotek Logo
  • Super Sport ASPS MOSFET PWM Power Supply For Instant Maxx
    Current Output
  • 1-Ω Capable A/B Class Mono Block Amps
  • 2-Ω Capable A/B Class 2/4 CH Amps
  • 4-Ch Amps Config to 3-Ch R & L and Sub Mode
  • Rugged PRO-FI™ MOSFET Audio Outputs
  • Super Sport AMP Protection with System Diagnostics LEDs that
    Guard Against :
    • Current / Amperage Overload
    • Short Circuits
    • Thermal Overload
    • DC offset
  • Silver Preamp Level RCA Inputs
  • Daisy Chain Line Outputs
  • Mono Blocks Include a Remote Bass Control
  • Pro-Fi™ Sound Shaping Controls
    • Mono / Stereo Switch
    • HP/LP Full-pass Freq, Selections
    • Crossover Frequency Adjustments(60 Hz~1.2 KHz for
      all multi-channel amps) (30 Hz ~250 Hz Low-pass)
      Except SS 750.1, SS 500.1
  • 4-CH Amps Include Separate F & R Bass EQ controls Adjustable
    +12 dB Bass EQ @ 45 Hz
  • Input Level control (0.2 V~5V for all 2/4 Ch Amps or 6V for
    Super Sport Mono-Blocks Amps)
  • Oversized Speaker Terminals



  Model

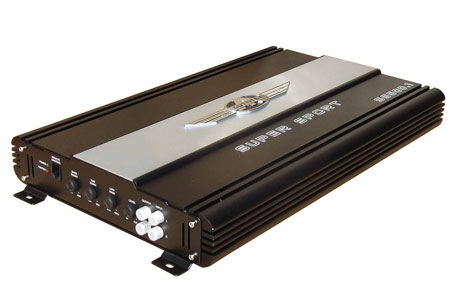

SS 500.1

Specification

Type 500 W 1 Channel A/B Class Mono
Power 500 W rms x 1 CH @ 1 Ω
  375 W rms x 1 CH @ 2 Ω
  300 W rms x 1 CH @ 4 Ω
Include Remote Mountable Bass Control
