 AMPLIFIER |
|
|
| |
FEATURE
- Full Mosfet Amplifier
- High Speed Output
Devices
- Stiffly Regulated Power
Supply
- 0~24 dB Variable Bass
EQ
- Fully Adjustable
Crossovers
- 18 dB Slope Variable
Adj. Line Outputs
- Subsonic Filter 20 Hz
- 2 or 4 AWG Molded
connectors
- Maxi Fuse
- Balanced Line Inputs
- Phone Jacks for Remote
Control Operation
- Bandpass
X/Over-Function
- Adj.Subsonic Filter
10~150 Hz
- 24 dB Slope on Subsonic
& LP in Mono
|
| |
|
Model |

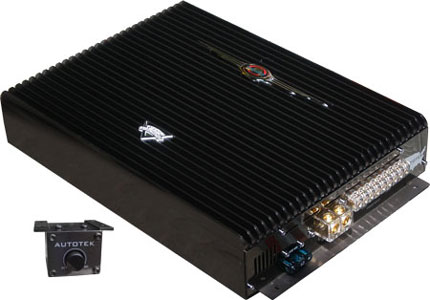

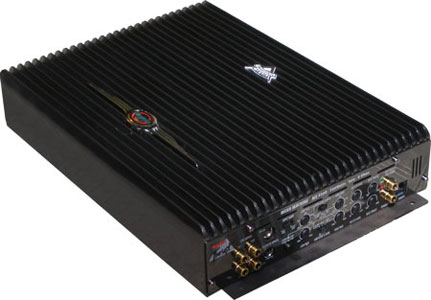

MX 4500 |
|
Specification |
|
Output Power Rating |
|
|
4 Ω Stereo |
60 W x 4 |
|
|
2 Ω Stereo |
90 W x 4 |
|
|
1 Ω Stereo |
125 W x 4 |
|
|
4 Ω Stereo |
180 W x 2 |
|
|
2 Ω Stereo |
250 W x 2 |
|
Maximum Current Draw |
58 A |
|
Frequency Response |
-3 dB |
|
Damping Factor |
> 250 |
|
S/N Ratio (A-Weight) |
< 0.03% |
|
THD |
< 0.03% |
|
Channel Separation |
> 85 dB |
|
Input Gain Control |
200 mV ~ 9.0V |
|
Input Impedance |
47 K Ω |
|
Crossover (1 & 2) |
LP.BP / FULL / HP |
|
|
Variable Hi-Pass |
10 Hz ~ 4 KHz |
|
|
Variable Low-Pass |
40 Hz ~ 4 KHz |
|
|
Subsonic Filter at 35 Hz |
No |
|
|
Bass Boost at Low Pass (42 Hz) |
0 dB ~ 18 dB |
|
Crossover (3 & 4) |
LP.BP / FULL / HP |
|
|
Variable Hi-Pass |
10 Hz ~ 4 KHz |
|
|
Variable Low-Pass |
40 Hz ~ 4 KHz |
|
|
Subsonic Filter at 35 Hz |
No |
|
|
Bass Boost at Low Pass (42 Hz) |
0 dB ~ 18 dB |
|
Balanced Input (Din Jack) |
Yes |
|
Line Output |
Summed Line Out |
|
Remote Control |
1 Remote jack |
|
| |
