Booster Equalizer |
|
|
9 Band Stereo Graphic Equalizer
|
| |
|
FEATURE
-
4 Channel Power Booster w/ Scanning
-
Nine Push VR controls for typical audio frequencies
give ± 12dB of
emphasis and attenuation for adjusting the sound quality.
Induction interference noise free equalizer circuit
by operation circuit.
-
LED power level indicator
-
PUSH fader adjust front and rear sound balance
-
OUTPUT of the UNIT is electrically protected against
possible incorrect connections. e.g. short circuit
/ grounding connection.
-
High / Low level dual inputs
-
Hi-power 4 channle output
-
Push scan light the LED indicator of each frequency
band
one after another in sequence to display the graphic
curve
|
| |
|

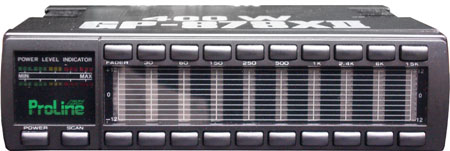

Model
|
GP-878XII Black
|
|
SPECIFICATIONS
|
| Power
Supply |
11-16
DVC |
|
Polarity
|
Negative ground |
| Current
|
10
Amps Maximum |
|
Frequency Response |
30 ~ 30 KHz
|
| Output
power |
300
Watts |
|
Load impedance
|
2 ~ 16 Ω |
| Tone
Control Range |
12
dB Boost or cut |
|
Tone Control Frequency
|
30 Hz, 60 Hz, 150
Hz, 250 Hz,
500 Hz, 1 KHz, 2.4 KHz, 6 KHz,
15 KHz, |
| Signal
to noise ratio |
>
65dB |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
