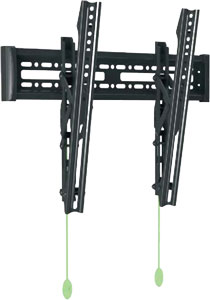

 LED
/ LCD / PLASMA WALL MOUNT BRACKET |
|
|
|
| |
|
FEATURE
- 0~12°
- When TV is mounted
on the product the gravity will cause
the hook to lock the TV to the product preventing loose.
- Ensure safety of
your TV
- To remove the TV
, just pull string on the hook ,
its convenient and safe
|
| |
|
Model |
NBC 2T
|
|
SPECIFICATIONS
|
|
Suit TV Size |
32" ~ 57" |
| Capacity |
60
lbs / 27.3 Kgs |
|
VESA |
100mm x 100mm, 100mm
x 200mm, 200mmx 200mm, 200mm x 400m,
300 mm x 300mm, 300 x 400mm
400 x 400 mm(max) |
| Product Dimension
(WxHxD) |
500mm
x 410mm x 30mm |
|
Max Mount |
410mm x 400mm |
| Gap |
35mm |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
